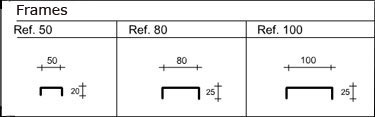

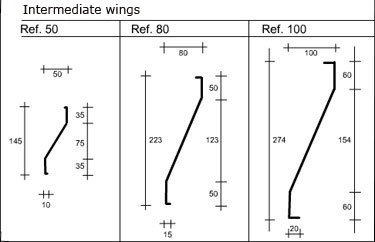

Comovent PVC louvers are presented in three different dimensions or “references” (depth of the panel), which use economically the full space of the width of the modules, in accordance of the ventilation area. Comovent louvers in fiberglass offers more freedom in the dimensioning of the modules, permitting the fabrication of wings of larger length.

Measures – limit for maximum width in PVC.
Ref. 50 = module width up to 1.000mm
Ref. 80 = Module width up to 1.250mm
Ref. 100 = Module width up to 1.250mm
